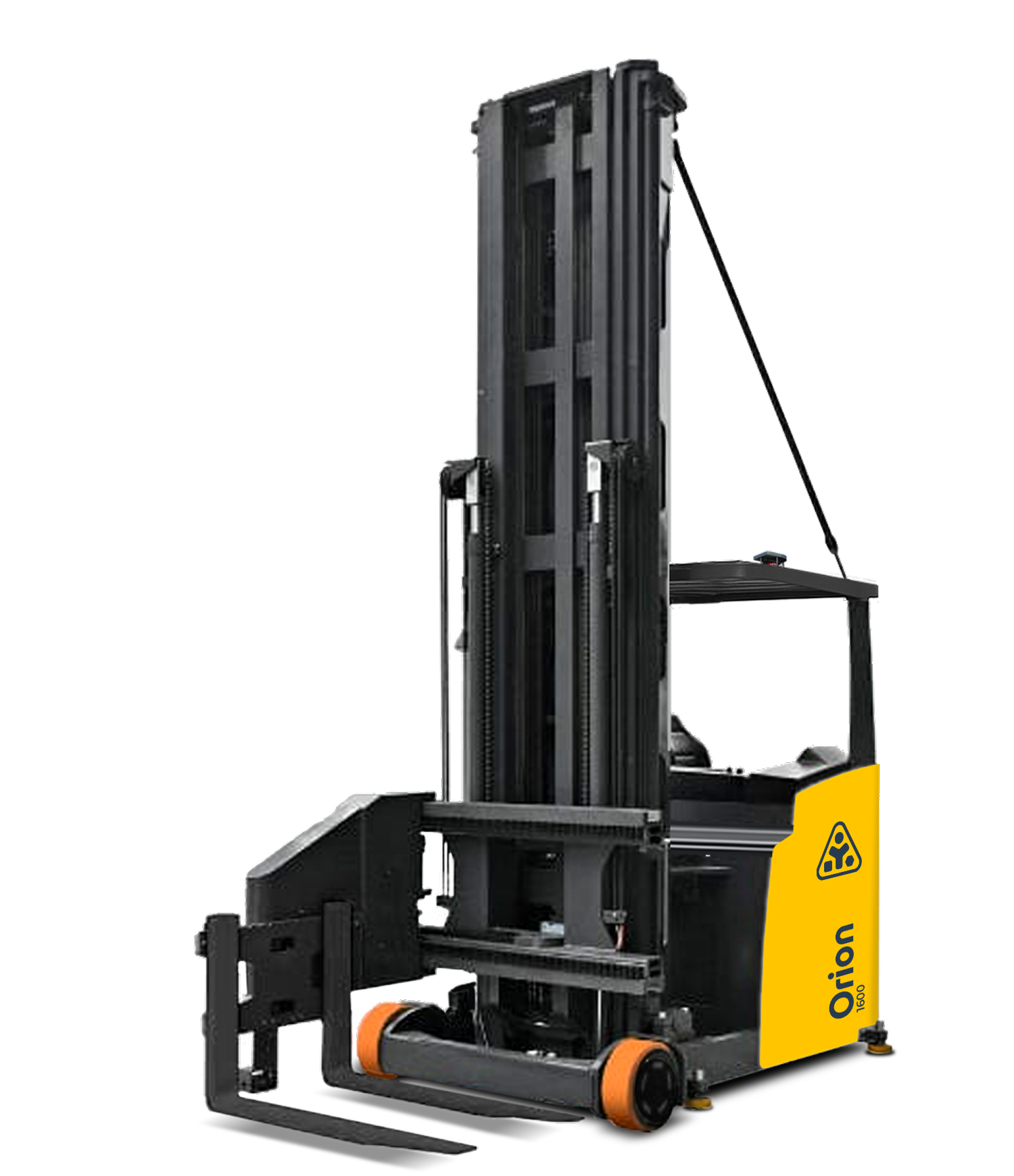

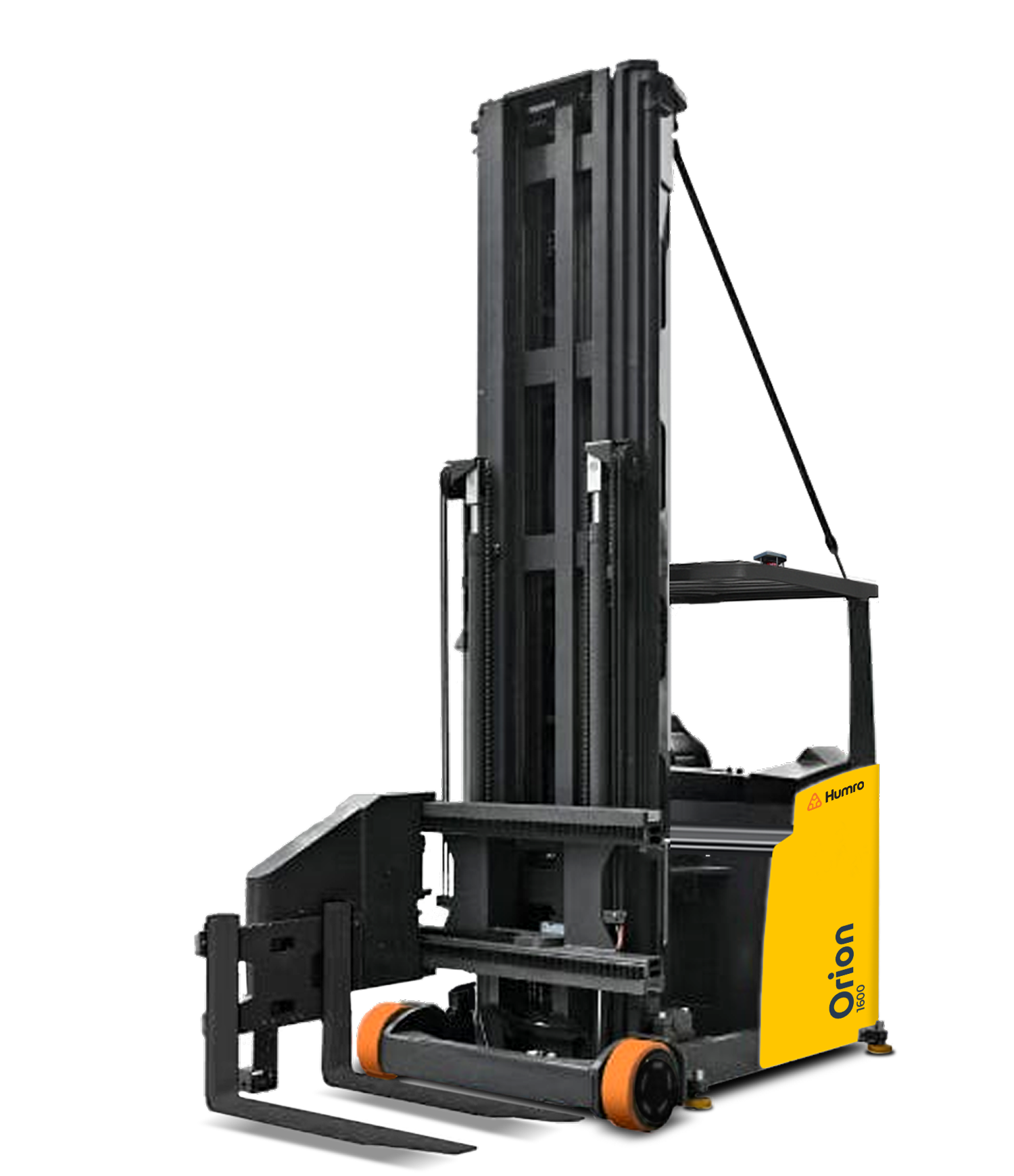

Autonomous Narrow Aisle Forklift

The Autonomous VNA Reach Truck is engineered forhigh density storage in verynarrow aisles , With precise navigation and reach capabilities, it efficiently handlespallet storage and retrieval at height, even in tight spaces. Safe and accurate materialhandling in confined areas.

Download Brochure

Orion 1600

2000

Load Capacity

3527 lb (1600 kg)

Max Travel Speed

5 mph (2.2 m/s)

Lift Height

19.7 ft (6000 mm)

See it in Action

Features

LiDAR Sensors – Scanning

Equipped with sensors, cameras and LiDAR systems to detect obstacles and people in their path. They can slow down or stop to prevent collisions

Safety features

Robot is equipped with collision avoidance technology and emergency stop for operating safety.

E Stop Buttons

Equipped with sensors, cameras and LiDAR systems to detect obstacles and people in their path. They can slow down or stop to prevent collisions

LiDAR Sensors – SLAM

Programmed to operate within specific zones, and they can be configured to slow down or stop when entering restricted areas or high-traffic zones

Powerful Software

Intuitive, real-time control platform for monitoring, managing, and optimizing robot performance. Providing clear insights and seamless integration with warehouse operations.

Specifications

Rated Capacity
3527 lb (1600 kg)
Navigation Method
Laser SLAM navigation
Lifting Height
19.7 ft (6000 mm)
Turning Radius
6.8 ft (2085 mm)
Dimensions (L X W X H)
10.9 X 5.1 X 13.3 ft (3315 X 1575 X 4065 mm)
Fork Rotation Axis Distance
2.8 ft (845 mm)
Max Travelling Speed(Loaded/Unloaded)
5 mph (2.2 m/s)
Fork Outside Spread
265~765 mm
Side Shifting Distance
4.2 ft (1280 mm)
